DJI Snail - Racing Propulsion System (Motor + ESC)

The Snail is a drone racing optimized propulsion system created to give racers the winning edge. It is fine tuned and precision engineers by DJI propulsion experts to bring new levels of power and maneuverability to the races.

Motor Details

Combined with the 5048S Tri-Blade Propeller, the Snail 2305 Motor delivers an incredible 1.32kg of thrust, 15% more than the market average. As light weight is critical to racing drones, yet they have to endure frequent collisions, extensive simulations and flight tests have been carried out to make the Snail 2305 Motor stronger while keeping weight to a slim 27.8g.

ESC Details

The Snail 430-R ESC uses a high performance 32 bit 100MHz MCU and unique race optimized control algorithms, allowing it to outperform similar products in both response and efficiency. Its ultra-compact hardware design allows it to sustain a continuous current as high as 30A, from a form that is just 3.6cm. It can be further fine tuned to meet racer needs using the ESC Programmer and DJI Assistant 2.
*Oneshot125 Support
46000rpm (7 pole-pairs) Max
30A Max Continuous Current

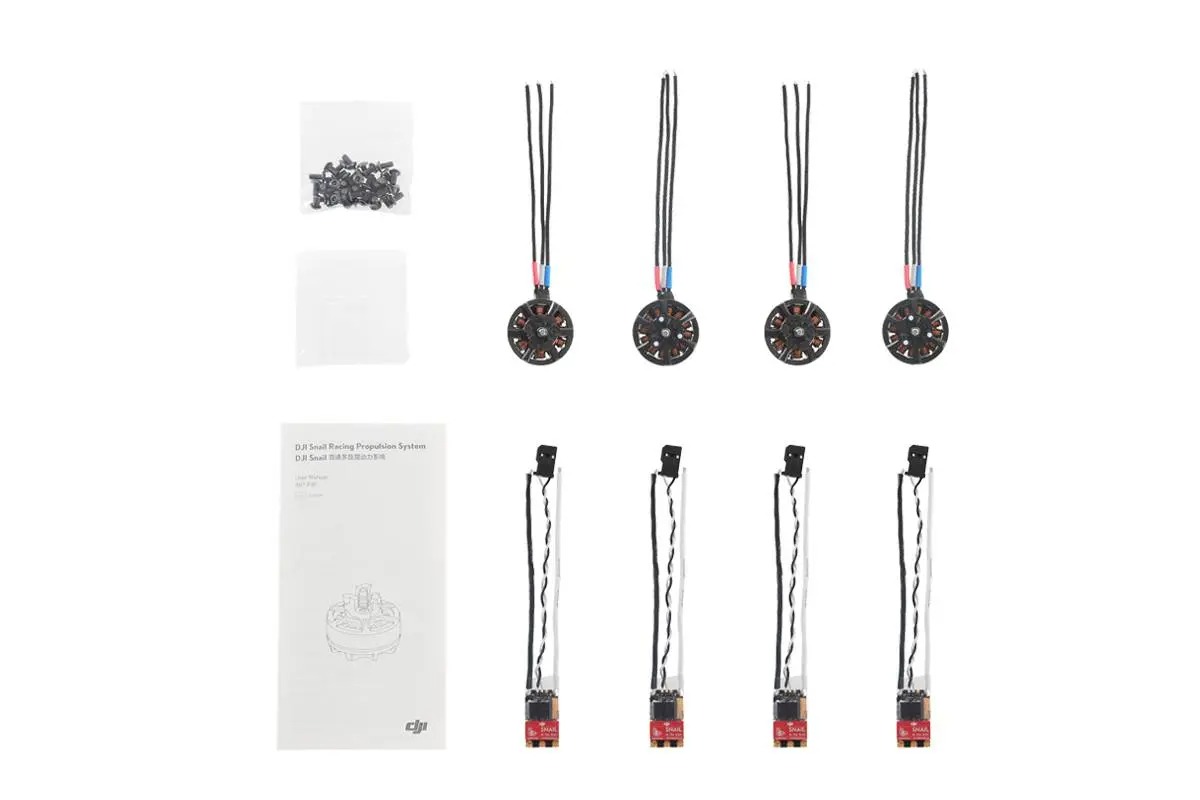

Kit Includes

• 2x 2305 Motor (CCW)
• 2x 2305 Motor (CW)
• 4x 430-R ESC
• 4x Heat-shrink Cover
• Motor Screws (M3x5, M3x6)
