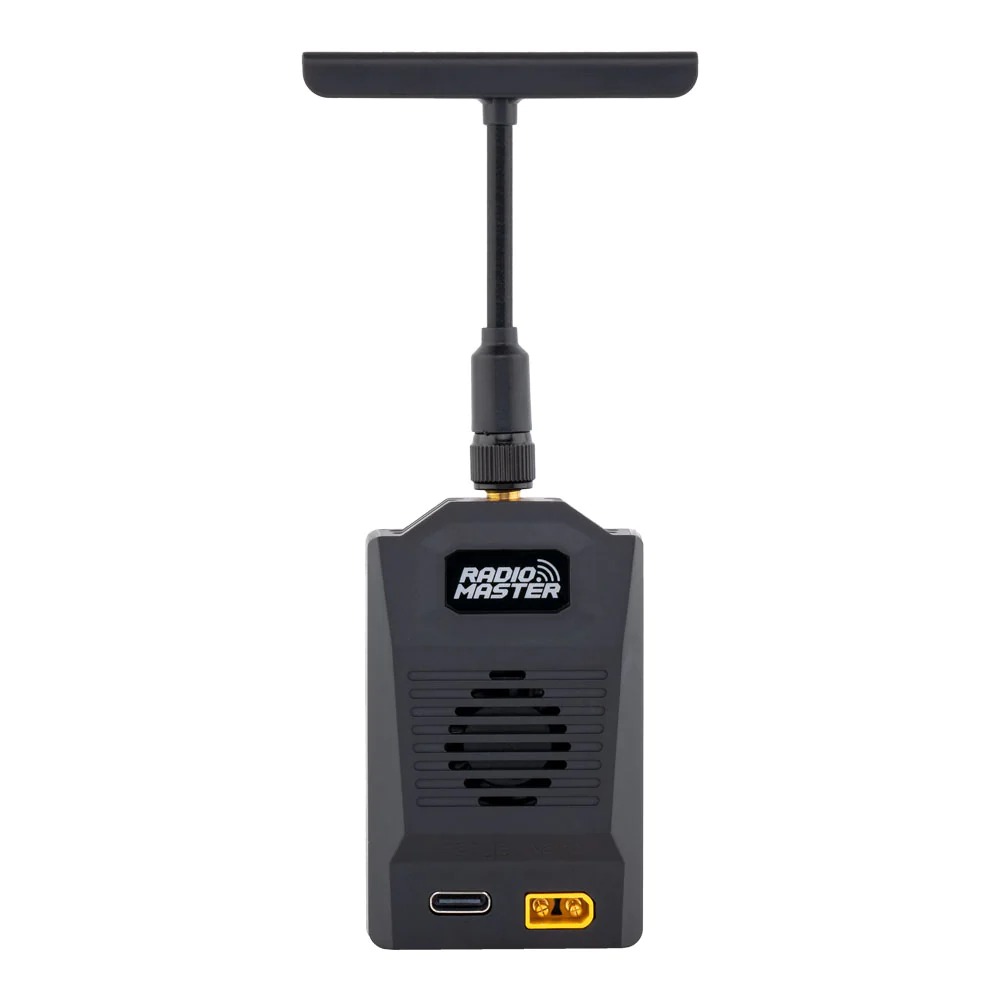

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series, please click here.
Features
- High-efficiency cooling system
- Wifi and Bluetooth support
- Packet rates up to F-1000Hz
- Up to 1Watt Power output
- T-antenna included
- With the Nano connector, support Zorro radio
Specification
- Item: Ranger Nano Module
- Regulatory Domain: ISM2400
- MCU: ESP32(main), ESP8285(aux,as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Wifi Support: Yes
- Bluetooth support: Yes
- XT30 Power supply voltage: DC 6V - 16.8V
- Weight: 48g (with antenna) / 39g (without antenna)
- Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
Package Includes
- 1 * Ranger Nano Module
- 1 * T Antenna
