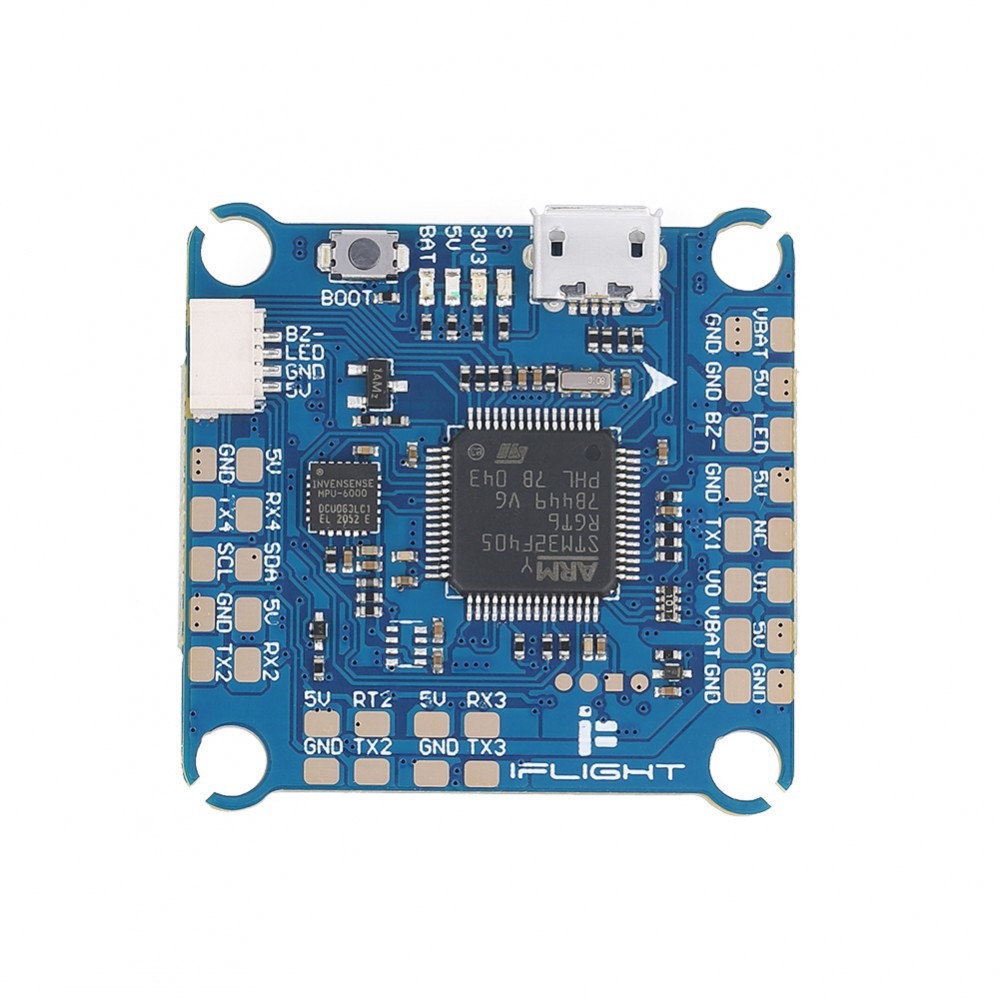

iFlight SucceX-E F405 V2.2 Flight Controller (MPU6000) (30x30)

PRODUCT DESCRIPTION

Specs:

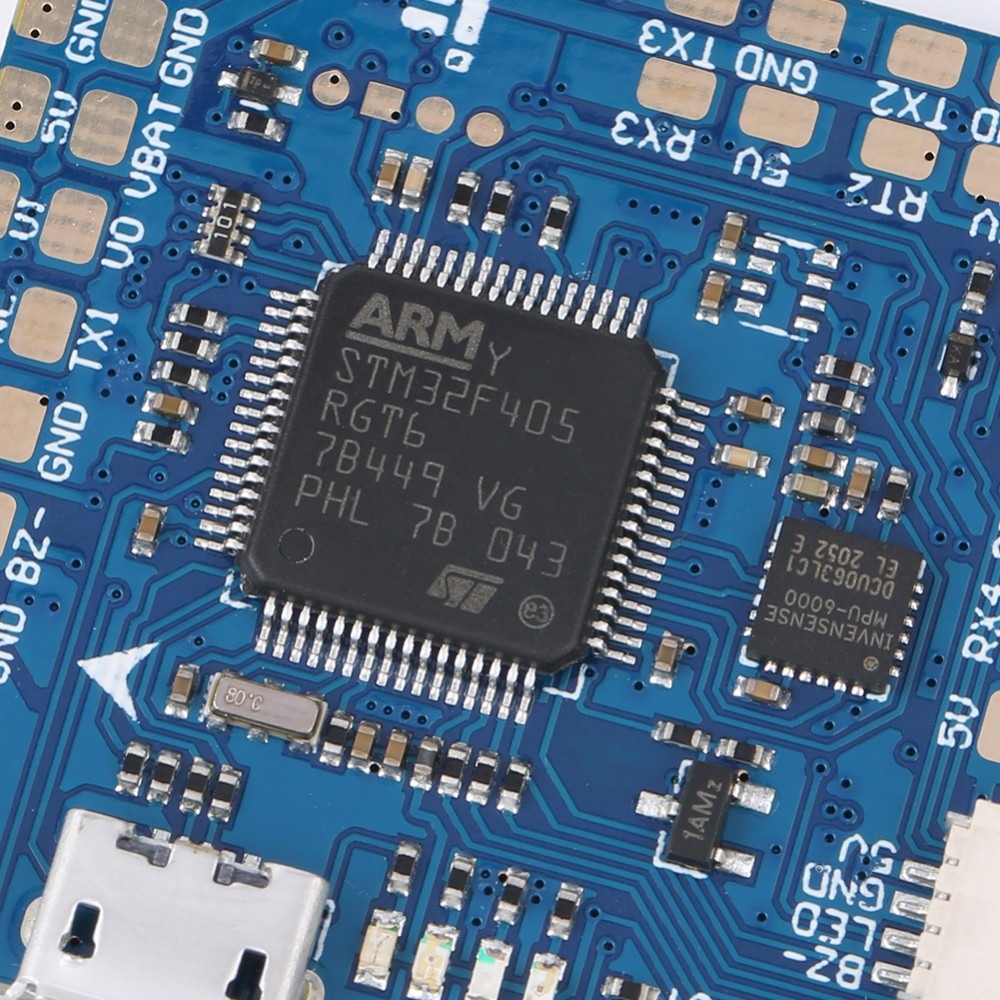

- MCU：STM32F405

- Gyro：MPU6000

- Baro: NO

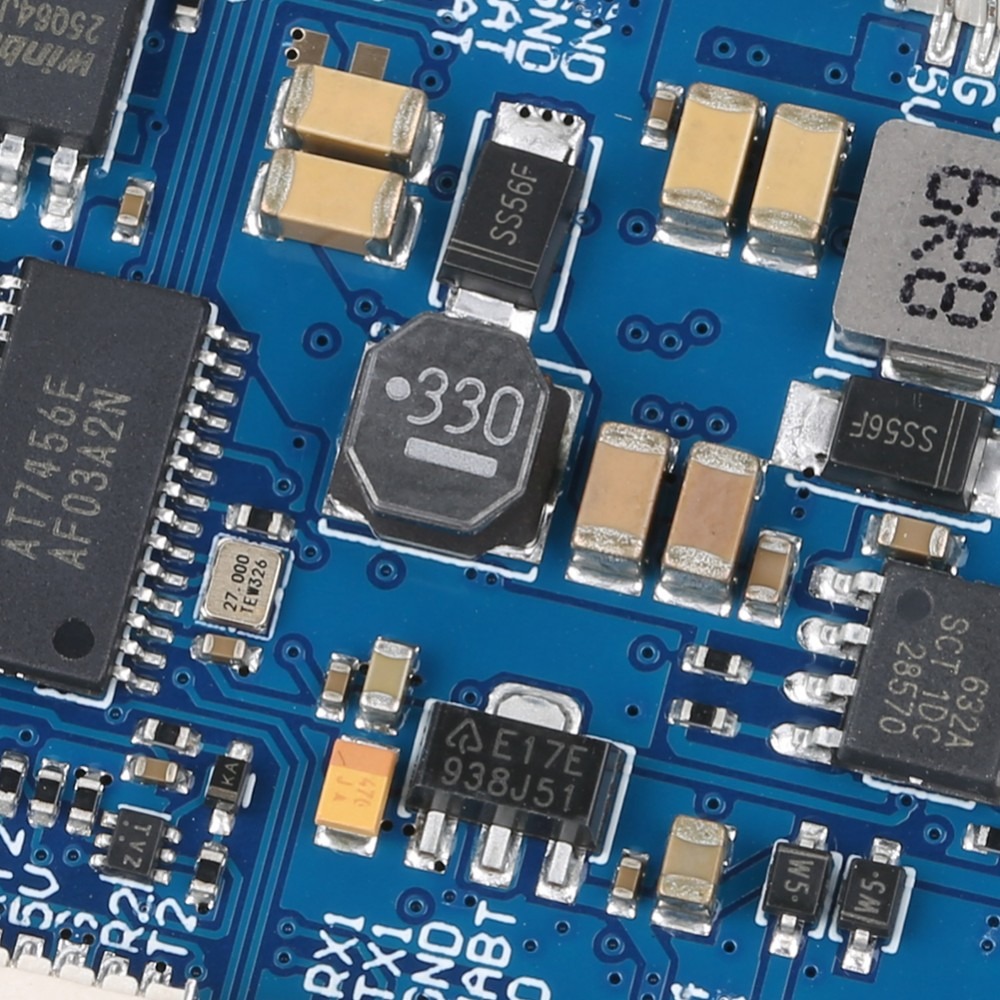

- Betaflight OSD：IFLIGHT OSD （AT7456E)

- Blackbox：16MB(W25Q128)

- 4X Uarts

- UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/Analog Telemetry

- UART2 for Receiver

- UART4 for Free

- UART6 for ESC Telemetry

- 1×12C

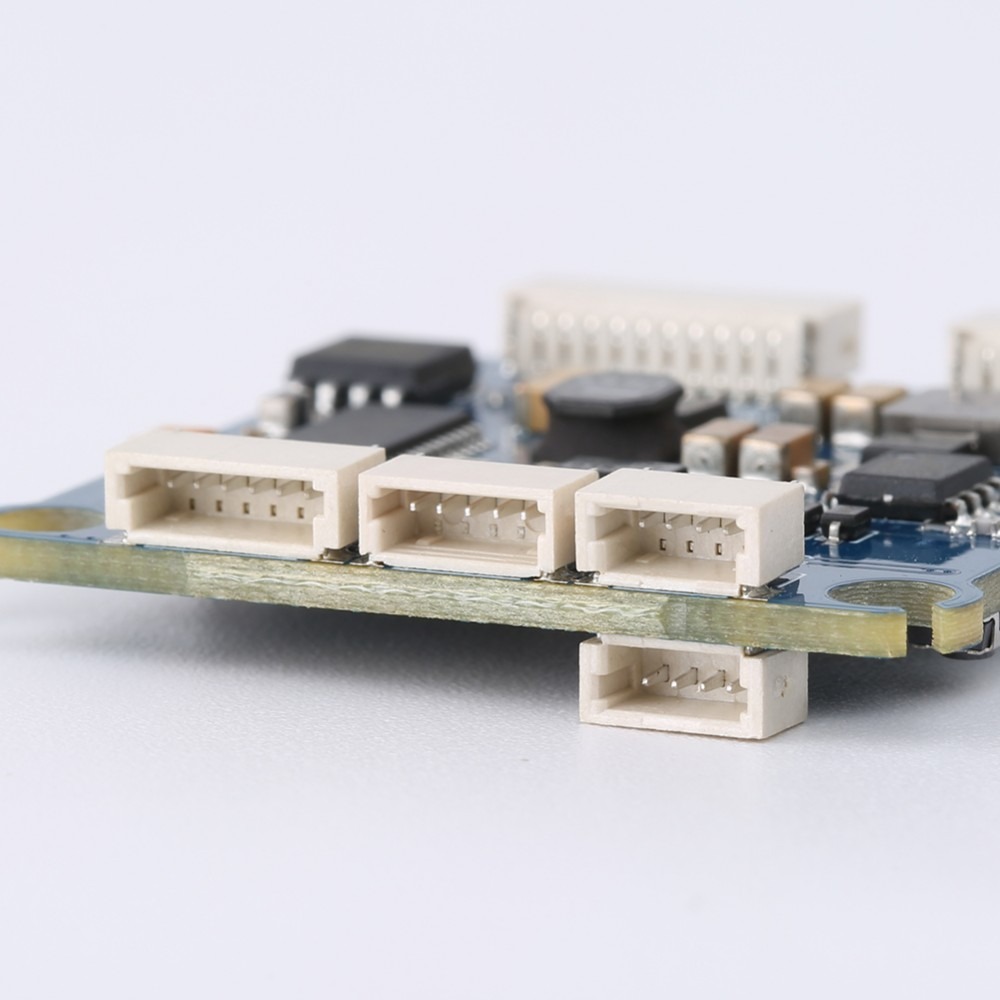

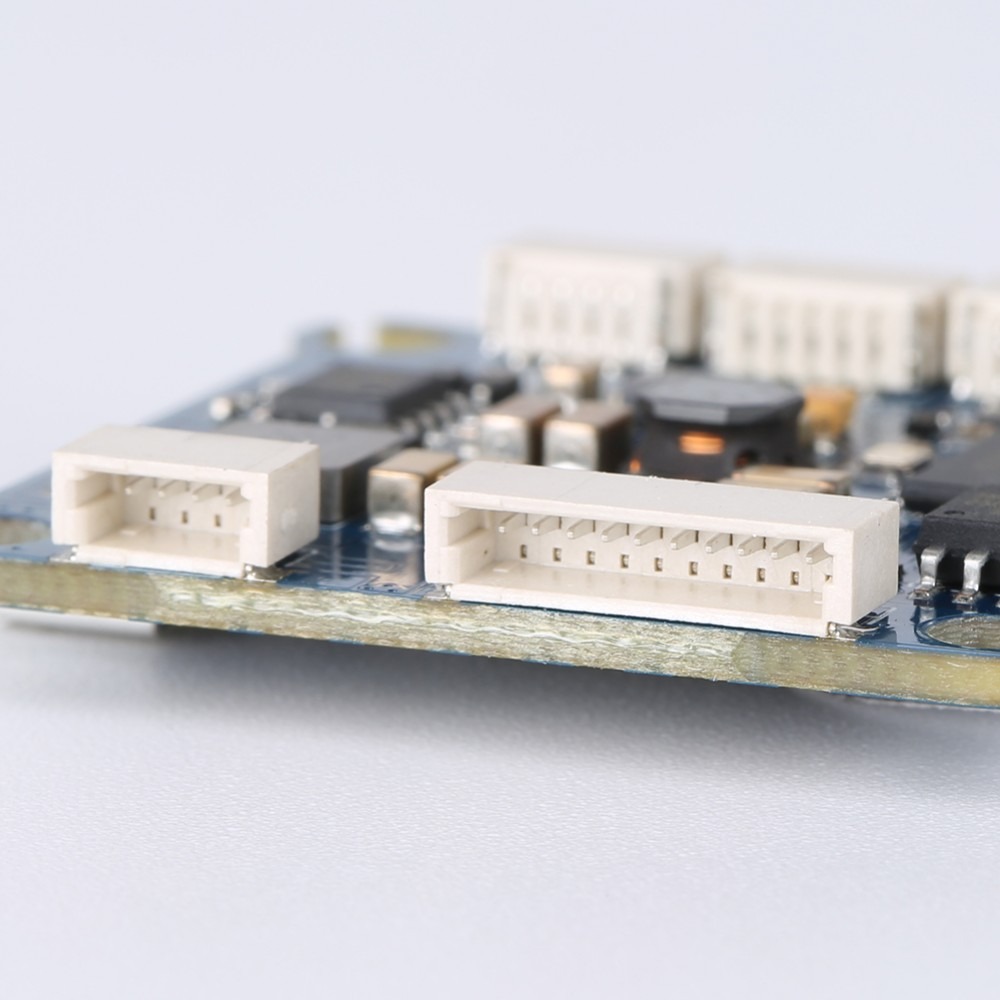

- 1×SH1.0 10pin connector for ESC（GND/GND/BAT/BAT/M1/M2/M3/M4/CUR/R6)

- 1 x SH1.0 6pin connector for Receiver（3.3V/RT2/5V/GND/R2/T2）

- 1 x SH1.0 5pin connector for VTX/Vista（RX1/TX1/GND/VBAT/VO)

- 1 x SH1.0 4pin connector for Camera(5V/GND/VI/NC)

- 1 x SH1.0 4pin connector for LED&Buzzer(5V/GND/LED/BZ-)

- 1 x SH1.0 4pin connector for Free （TX4/Rx4/GND/5V）

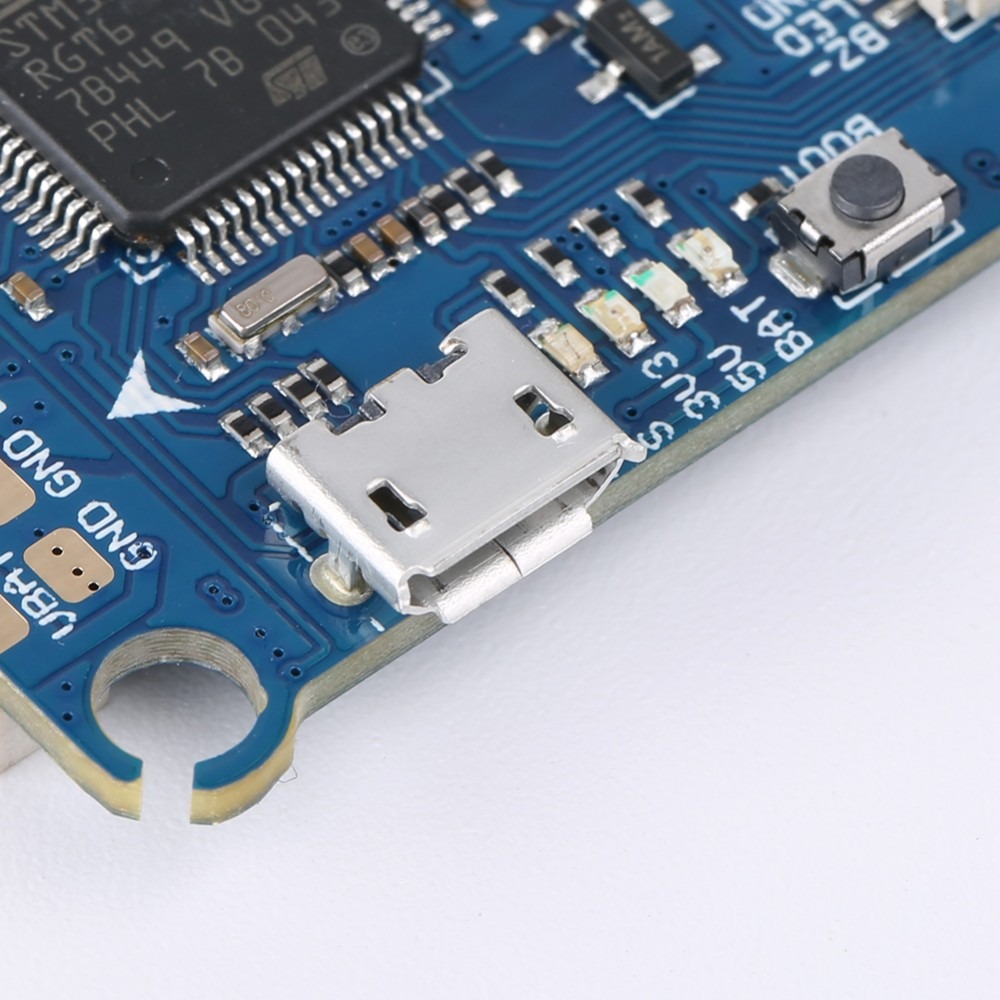

- 4×0201 LEDs for FC STATUS (Blue, Red，Orange ) and 3.3V indicator(Red)  BAT/+5V/3.3V/star

- WS2812 led Strip：YES

- Baro: BMP280(I2C）

- Beeper：YES

- Input：2-6S（Max 8S）

- BEC：5V / 3A

- Firmware: IFRC/BASE_F4

- Mounting：30.5*30.5/φ4

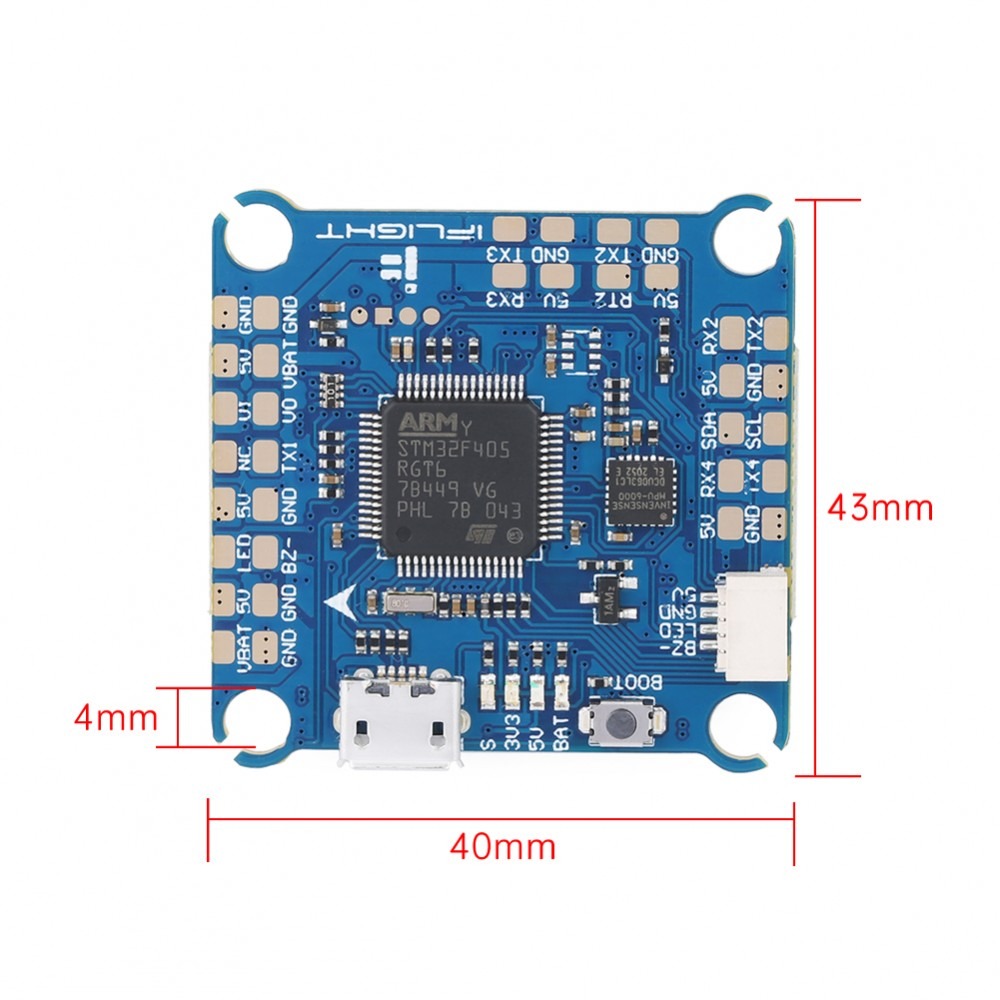

- Dimensions：36*36mm

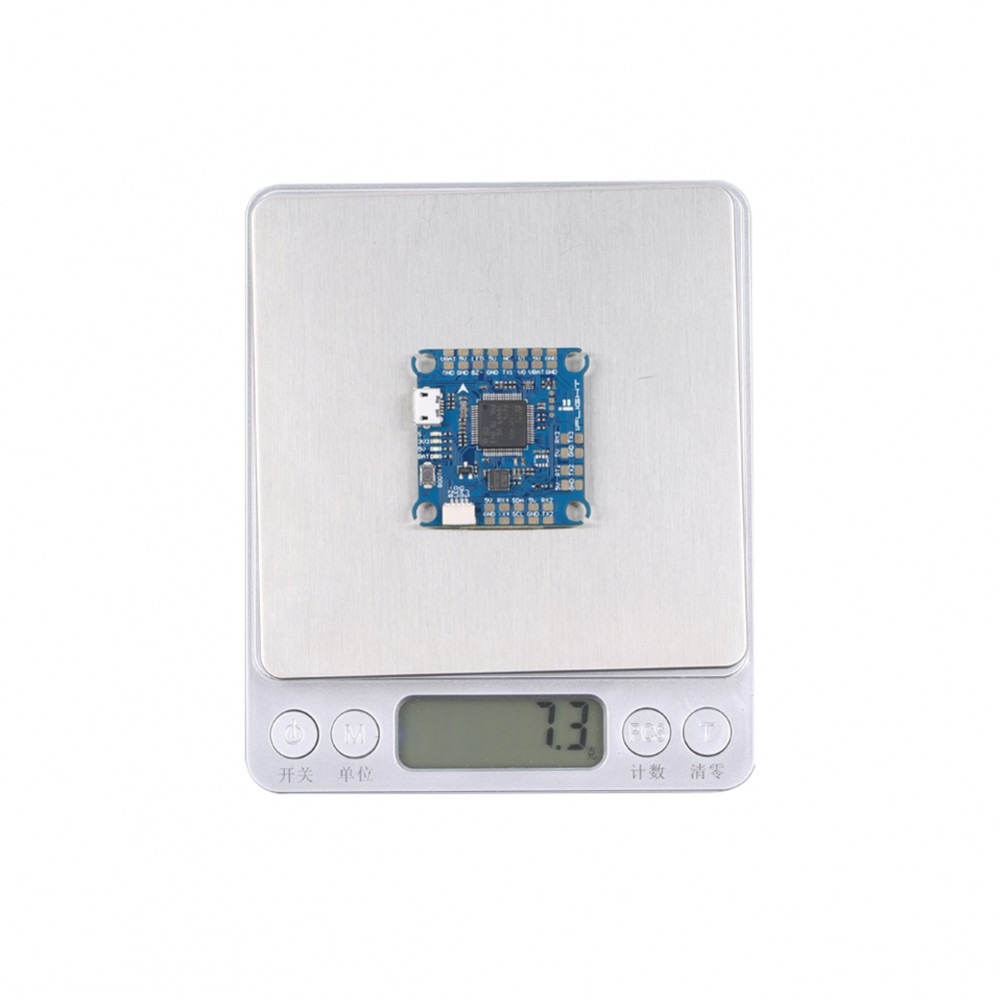

- Weight：7.3g

Package included:

1pc x SucceX-E F4 V2.2 Flight Controller

1set x Wire harness

NOTE: F.PORT protocol RX input support, telemetry not supported.
